Google Pixel 5
Complete phone profile

Google Pixel 5

A fast, evidence-aware guide to specifications, connectivity, hardware, and radiofrequency exposure measurements.

6.0 inches, 87.6 cm2 (~85.9% screen-to-body ratio)Android 11FCC ID A4RGD1YQ

At a glance

The facts most people need before the deep specification sheet.

Display6.0 inches, 87.6 cm2 (~85.9% screen-to-body ratio)
ProcessorQualcomm SM7250 Snapdragon 765G 5G (7 nm)
Operating systemAndroid 11
BatteryLi-Po 4080 mAh, non-removable
Main cameraDual Camera: 12.2 MP, f/1.7, 27mm (wide), 1/2.55", 1.4m, dual pixel PDAF, OIS 16 MP, f/2.2, 107 (ultrawide), 1.0m
NetworkGSM / CDMA / HSPA / EVDO / LTE / 5G
Announced2020-09-30 22:18:28
Dimensions144.7 x 70.4 x 8 mm (5.70 x 2.77 x 0.31 in)

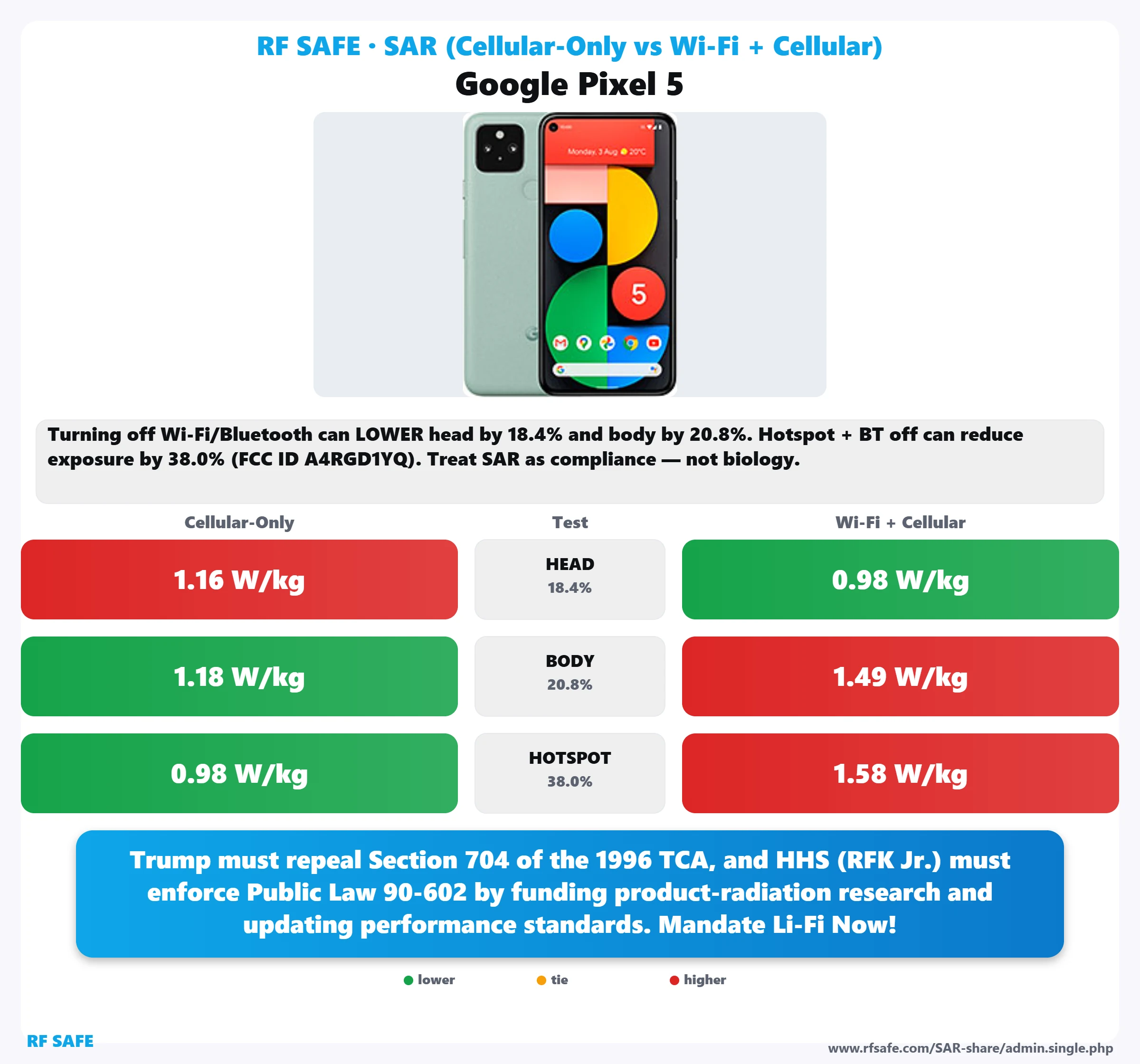

SAR
Hybrid SAR profile
Cellular-only and simultaneous transmitters
US limit 1.6 W/kg
Head · Cellular
1.16 W/kg
72.5% of 1.6#64
Body · Cellular
1.18 W/kg
73.8% of 1.6#71
Hotspot · Cellular
0.98 W/kg
61.2% of 1.6#14
Head · Wi-Fi + Cell
0.98 W/kg
61.2% of 1.6#4
Body · Wi-Fi + Cell
1.49 W/kg
93.1% of 1.6#38
Hotspot · Wi-Fi + Cell
1.58 W/kg
98.8% of 1.6#55
PositionCellular onlyDifferenceWi-Fi + cellular
Head1.16 W/kg 72.50% · #640.0% lower0.98 W/kg 61.25% · #4
Body1.18 W/kg 73.75% · #7120.8% lower1.49 W/kg 93.13% · #38
Hotspot0.98 W/kg 61.25% · #1438.0% lower1.58 W/kg 98.75% · #55

Difference = (1 − cellular-only ÷ simultaneous) × 100. Rank and percentage values come from the supplied RF Safe cache. SAR is a compliance measurement, not an individualized health prediction.

Complete specifications

Factual fields are shown first. Longer cached editorial notes remain expandable to keep the page fast to scan.

◉  General
Phone
Google Pixel 5
Technology
GSM / CDMA / HSPA / EVDO / LTE / 5G
Announced
2020-09-30 22:18:28
Status
Available. Released 2020, October 15
Price
$ 629.99 / € 719.77 / £ 599.00 / ₹ 63,710
Model Names
GD1YQ, GTT9Q
▣  Display
Type
OLED, 90Hz, HDR10+
Size
6.0 inches, 87.6 cm2 (~85.9% screen-to-body ratio)
Resolution
1080 x 2340 pixels, 19.5:9 ratio (~432 ppi density)
Protection
Corning Gorilla Glass 6
Features
Corning Gorilla Glass 6 Always-on display
◎  Camera
Main Camera
Dual Camera: 12.2 MP, f/1.7, 27mm (wide), 1/2.55", 1.4m, dual pixel PDAF, OIS 16 MP, f/2.2, 107 (ultrawide), 1.0m
Main Features
LED flash, Pixel Shift, Auto-HDR, panorama
Video
4K@30/60fps, 1080p@30/60/120/240fps; gyro-EIS
Selfie Camera
Single Camera: 8 MP, f/2.0, 24mm (wide), 1/4.0", 1.12m
Selfie Camera Features
Auto-HDR
Selfie Camera Video
1080p@30fps
ϟ  Battery
Type
Li-Po 4080 mAh, non-removable
Charging
USB Power Delivery 2.0 Fast charging 18W Wireless charging 12W Reverse charging 5W
◆  Hardware
Operating System
Android 11
Chipset
Qualcomm SM7250 Snapdragon 765G 5G (7 nm)
CPU
Octa-core (1x2.4 GHz Kryo 475 Prime & 1x2.2 GHz Kryo 475 Gold & 6x1.8 GHz Kryo 475 Silver)
GPU
Adreno 620
Internal Storage
128GB 8GB RAM
Card Slot
No
Sensors
Fingerprint (rear-mounted), accelerometer, gyro, proximity, compass, barometer
⌁  Connectivity
Wi-fi
Wi-Fi 802.11 a/b/g/n/ac, dual-band, Wi-Fi Direct, hotspot
Bluetooth
5.0, A2DP, LE, aptX HD
USB
USB Type-C 3.1
GPS
Yes, with A-GPS, GLONASS, GALILEO, QZSS, BDS
NFC
Yes
Radio
No
◒  Sound
Loudspeaker
Yes, with stereo speakers
3.5mm Jack
No
◇  Design
Type
Bar
Dimensions
144.7 x 70.4 x 8 mm (5.70 x 2.77 x 0.31 in)
Weight
151 g (5.33 oz)
Colors
Just Black, Sorta Sage
Build
Glass front (Gorilla Glass 6), aluminum back, aluminum frame
⌁  Network
Speed
HSPA 42.2/5.76 Mbps, LTE-A (CA), 5G
SIM
Nano-SIM and/or eSIM
2G Network
GSM 850 / 900 / 1800 / 1900
3G Network
HSDPA 850 / 900 / 1700(AWS) / 1900 / 2100
4G Network
1, 2, 3, 4, 5, 7, 8, 12, 13, 14, 17, 18, 19, 20, 25, 26, 28, 29, 30, 32, 38, 39, 40, 41, 42, 46, 48, 66, 71
5G Network
1, 2, 3, 5, 7, 8, 12, 28, 41, 66, 71, 77, 78, 258, 260, 261 Sub6/mmWave - GD1YQ
