Google
Google Pixel 2 XL
Complete phone profile

Google Pixel 2 XL

A fast, evidence-aware guide to specifications, connectivity, hardware, and radiofrequency exposure measurements.

6.0 inches, 92.6 cm2 (~76.4% screen-to-body ratio)Android 8.0 (Oreo), upgradable to Android 11FCC ID ZNFG011C

At a glance

The facts most people need before the deep specification sheet.

Display6.0 inches, 92.6 cm2 (~76.4% screen-to-body ratio)
ProcessorQualcomm MSM8998 Snapdragon 835 (10 nm)
Operating systemAndroid 8.0 (Oreo), upgradable to Android 11
BatteryLi-Ion 3520 mAh, non-removable
Main cameraSingle Camera: 12.2 MP, f/1.8, 27mm (wide), 1/2.55", 1.4m, dual pixel PDAF, Laser AF, OIS
NetworkGSM / CDMA / HSPA / EVDO / LTE
AnnouncedOctober 4, 2017
Dimensions157.9 x 76.7 x 7.9 mm (6.22 x 3.02 x 0.31 in)

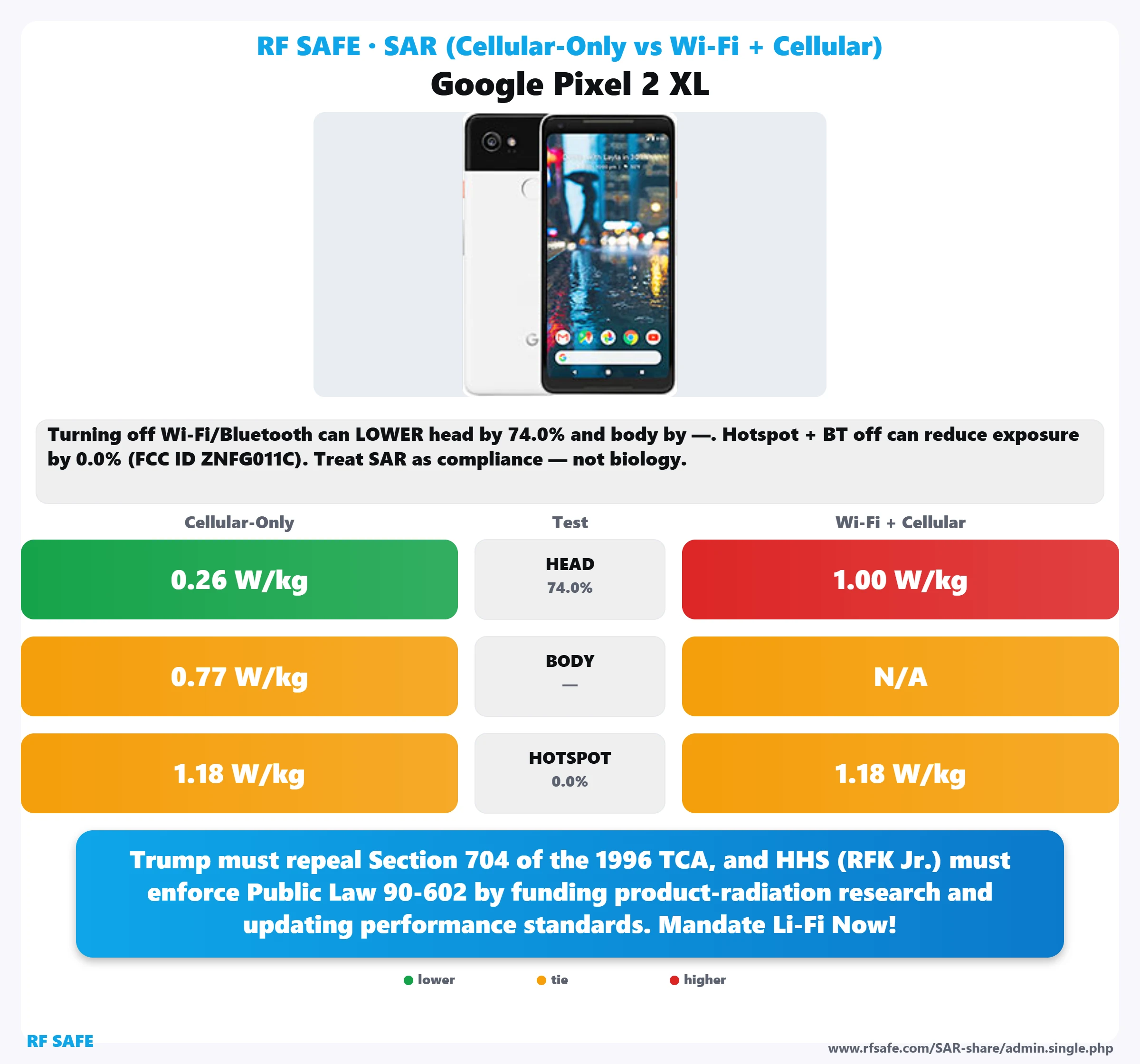

SAR
Hybrid SAR profile
Cellular-only and simultaneous transmitters
US limit 1.6 W/kg
Head · Cellular
0.26 W/kg
16.2% of 1.6#3
Body · Cellular
0.77 W/kg
48.1% of 1.6#15
Hotspot · Cellular
1.18 W/kg
73.8% of 1.6#55
Head · Wi-Fi + Cell
1.00 W/kg
62.5% of 1.6#5
Body · Wi-Fi + Cell
N/A
0.0% of 1.6—
Hotspot · Wi-Fi + Cell
1.18 W/kg
73.8% of 1.6#10
PositionCellular onlyDifferenceWi-Fi + cellular
Head0.26 W/kg 16.25% · #374.0% lower1.00 W/kg 62.50% · #5
Body0.77 W/kg 48.13% · #15—N/A N/A · —
Hotspot1.18 W/kg 73.75% · #550.0% lower1.18 W/kg 73.75% · #10

Difference = (1 − cellular-only ÷ simultaneous) × 100. Rank and percentage values come from the supplied RF Safe cache. SAR is a compliance measurement, not an individualized health prediction.

Complete specifications

Factual fields are shown first. Longer cached editorial notes remain expandable to keep the page fast to scan.

◉  General
Phone
Google Pixel 2 XL
Technology
GSM / CDMA / HSPA / EVDO / LTE
Announced
October 4, 2017
Status
Available
Price
About 520 EUR
▣  Display
Type
P-OLED
Size
6.0 inches, 92.6 cm2 (~76.4% screen-to-body ratio)
Resolution
1440 x 2880 pixels, 18:9 ratio (~538 ppi density)
Protection
Corning Gorilla Glass 5
Features
Always-on display
◎  Camera
Main Camera
Single Camera: 12.2 MP, f/1.8, 27mm (wide), 1/2.55", 1.4m, dual pixel PDAF, Laser AF, OIS
Main Features
Dual-LED flash, HDR, panorama
Video
4K@30fps (gyro-EIS), 1080p@30/60/120fps (gyro-EIS), 720p@240fps (gyro-EIS)
Selfie Camera
Single Camera: 8 MP, f/2.4, 25mm (wide), 1/3.2", 1.4m
Selfie Camera Features
HDR
Selfie Camera Video
1080p@30fps
ϟ  Battery
Type
Li-Ion 3520 mAh, non-removable
Charging
10.5W wired (capped), PD2.0
◆  Hardware
Operating System
Android 8.0 (Oreo), upgradable to Android 11
Chipset
Qualcomm MSM8998 Snapdragon 835 (10 nm)
CPU
Octa-core (4x2.35 GHz Kryo & 4x1.9 GHz Kryo)
GPU
Adreno 540
Performance
AnTuTu: 206711 (v7) GeekBench: 6055 (v4.4) GFXBench: 13fps (ES 3.1 onscreen)
Internal Storage
64GB 4GB RAM, 128GB 4GB RAM UFS 2.1
Card Slot
No
Sensors
Fingerprint (rear-mounted), accelerometer, gyro, proximity, compass, barometer
⌁  Connectivity
Wi-fi
Wi-Fi 802.11 a/b/g/n/ac, dual-band, Wi-Fi Direct, DLNA
Bluetooth
5.0, A2DP, LE, aptX HD
USB
USB Type-C 3.1
GPS
GPS, GLONASS, BDS, GALILEO
NFC
Yes
Radio
No
◒  Sound
Loudspeaker
Yes, with stereo speakers
3.5mm Jack
No
◇  Design
Type
Bar
Dimensions
157.9 x 76.7 x 7.9 mm (6.22 x 3.02 x 0.31 in)
Weight
175 g (6.17 oz)
Colors
Just Black, Black & White
Build
Glass front (Gorilla Glass 5), aluminum/glass back, aluminum frame
⌁  Network
Speed
HSPA 42.2/5.76 Mbps, LTE-A (3CA) Cat15 800/75 Mbps
SIM
Nano-SIM and eSIM IP67 dust/water resistant (up to 1m for 30 min)
2G Network
GSM 850 / 900 / 1800 / 1900 CDMA 800 / 1900
3G Network
HSDPA 850 / 900 / 1700(AWS) / 1900 / 2100 CDMA2000 1xEV-DO
4G Network
1, 2, 3, 4, 5, 7, 8, 12, 13, 17, 20, 25, 26, 28, 29, 30, 32, 38, 40, 41, 66
