Shareable phone radiation visuals
Google Pixel 7a SAR images
Explore the main SAR snapshot, animated Head and Body views, and child-versus-adult panels—without loading the massive image-to-image comparison database.
SAR level summary
FCC ID A4RGHL1XGoogle Pixel 7a SAR Level Summary
The cellular transmission SAR values for the Google Pixel 7a (FCC ID A4RGHL1X) are 1.20 W/kg at the head and 0.95 W/kg when worn on the body. The hotspot/AirPlay SAR level is 0.99 W/kg. Simultaneous transmission SAR values (cellular + Wi-Fi) include: 1.58 W/kg at the head, 1.58 W/kg on the body, and 1.59 W/kg when used as a hotspot.
| Test position | Cellular only | Difference | Wi-Fi + cellular |
|---|---|---|---|
| Head | 1.20 W/kg | 24.1% lower | 1.58 W/kg |
| Body | 0.95 W/kg | 39.9% lower | 1.58 W/kg |
| Hotspot | 0.99 W/kg | 37.7% lower | 1.59 W/kg |
Difference is calculated relative to simultaneous transmission: (1 − cellular-only ÷ simultaneous) × 100. Values are regulatory SAR measurements, not individualized exposure predictions.
Main SAR panel
Cellular-only vs Cellular + Wi-Fi
Complete Head and Body SAR snapshot · Cellular-only and simultaneous transmission
Animated SAR
True two-frame animation
Toggle between animated Head and Body views. Click an animation to open it directly.

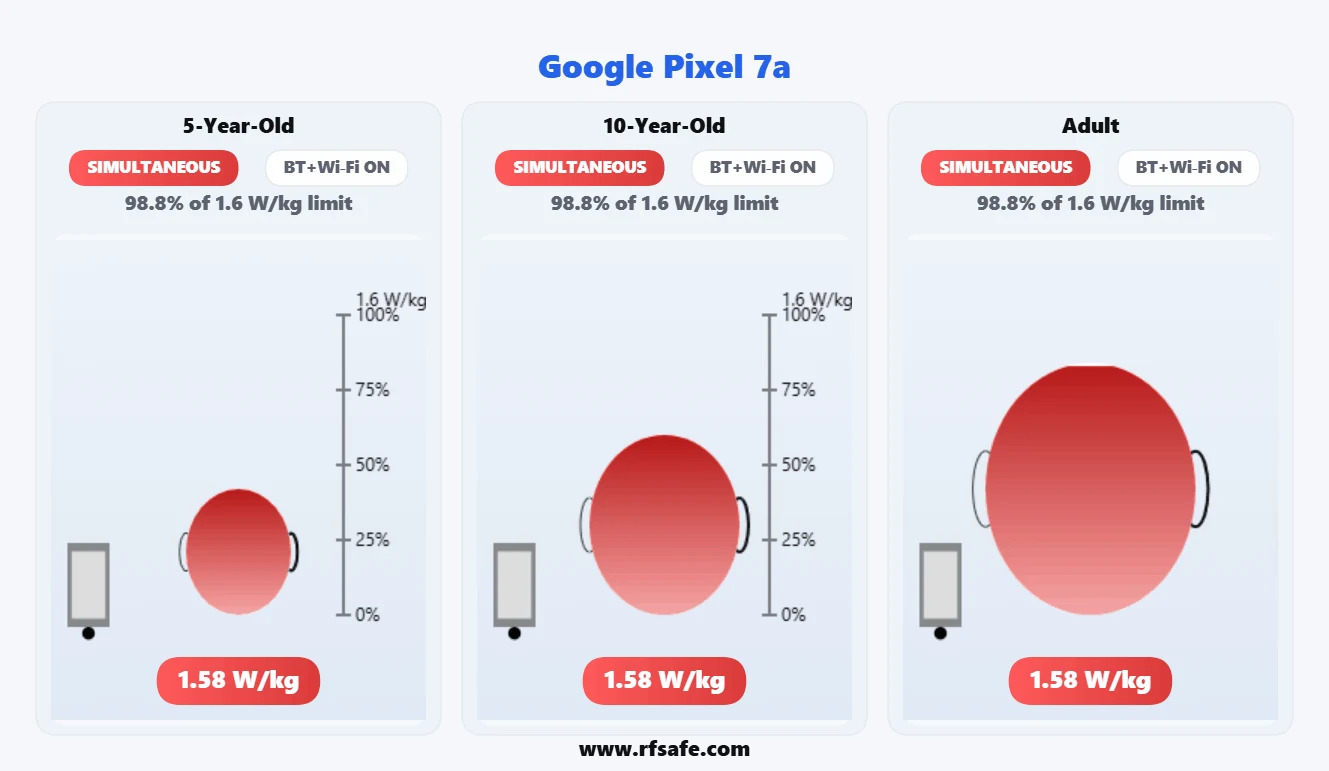

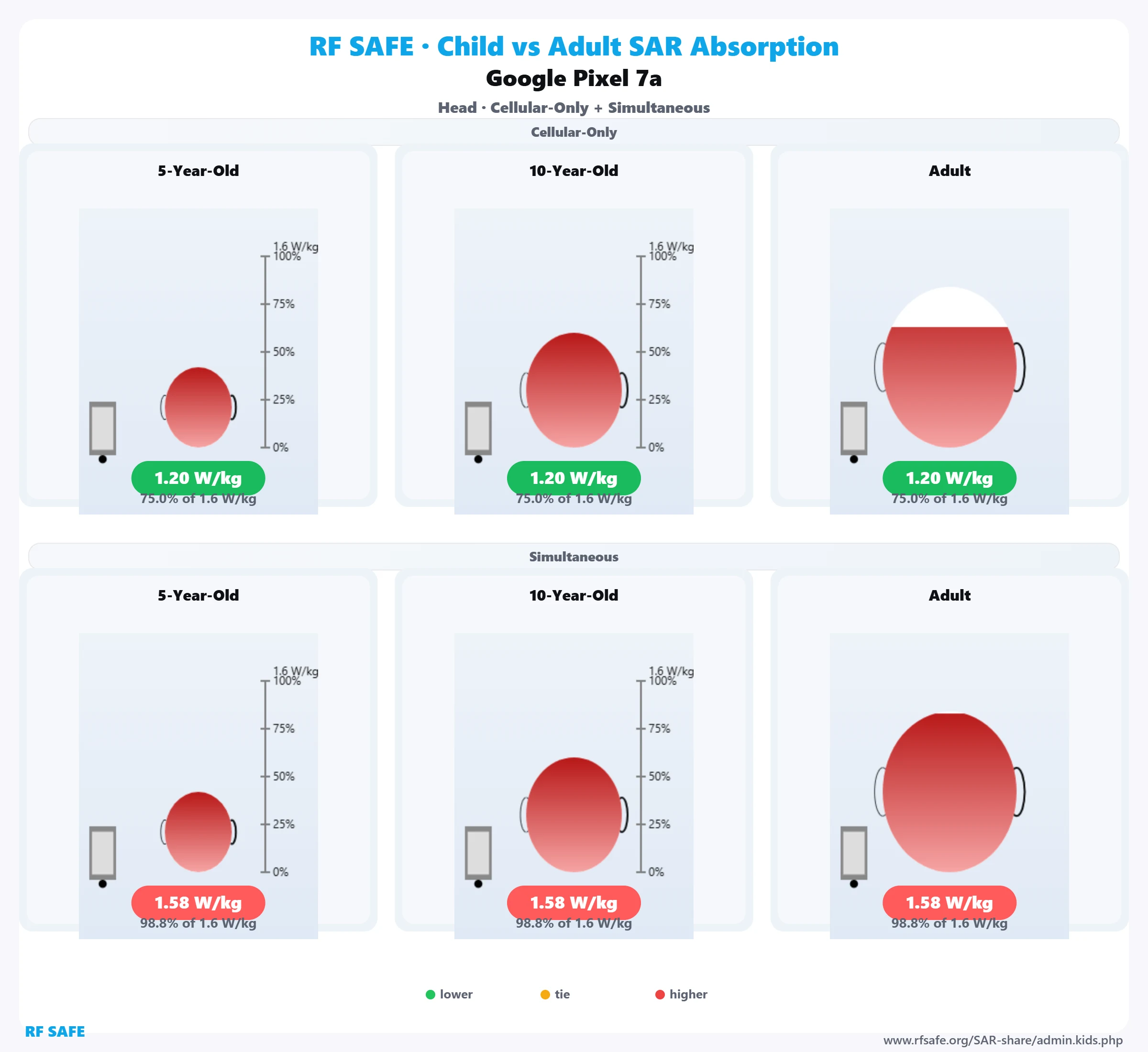

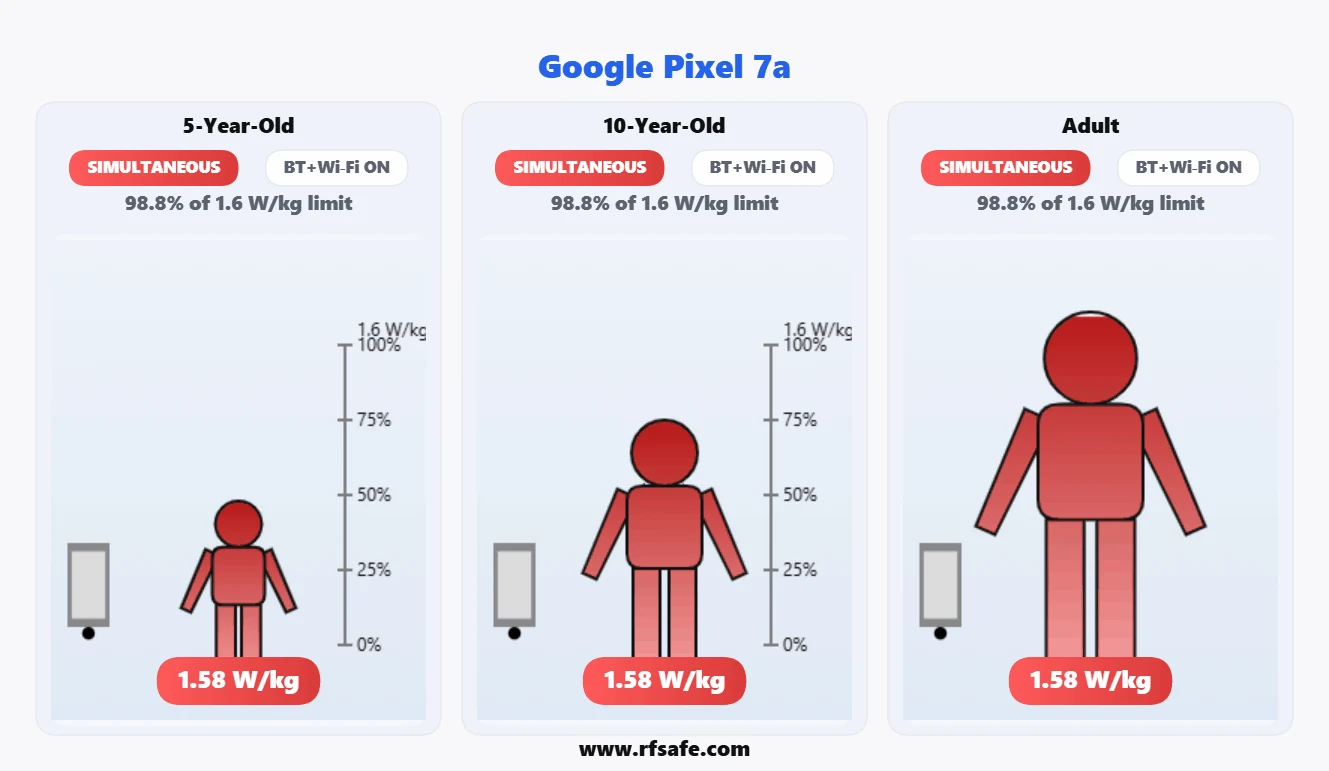

Head & Body child-versus-adult panels
5-year-old · 10-year-old · Adult
Head and Body panels show cellular-only and simultaneous Wi-Fi + cellular views.
Related phones
GoogleSAR is a regulatory compliance metric, not an individualized health prediction. Position, distance, active radios, network conditions, anatomy, and usage pattern affect exposure.
