Samsung
Samsung Galaxy S20 Plus
Complete phone profile

Samsung Galaxy S20 Plus

A fast, evidence-aware guide to specifications, connectivity, hardware, and radiofrequency exposure measurements.

6.7 inches, 108.0 cm2 (~90.5% screen-to-body ratio)Android 10.0; One UI 2FCC ID A3LSMG986U

At a glance

The facts most people need before the deep specification sheet.

Display6.7 inches, 108.0 cm2 (~90.5% screen-to-body ratio)
ProcessorExynos 990 (7 nm+) - GlobalQualcomm SM8250 Snapdragon 865 (7 nm+) - USA
Operating systemAndroid 10.0; One UI 2
BatteryNot listed
Main cameraQuad Camera: 12 MP, f/1.8, 26mm (wide), 1/1.76", 1.8m, Dual Pixel PDAF, OIS 64 MP, f/2.0, (telephoto), 1/1.72", 0.8m, PDAF, OIS, 3x hybrid optical zoom 12 MP, f/2.2, 13mm (ultrawide), 1.4m, Super Steady video 0.3 MP, TOF 3D, f/1.0, (depth)
NetworkGSM / CDMA / HSPA / EVDO / LTE
Announced2020-02-11 22:30:51
Dimensions161.9 x 73.7 x 7.8 mm (6.37 x 2.90 x 0.31 in)

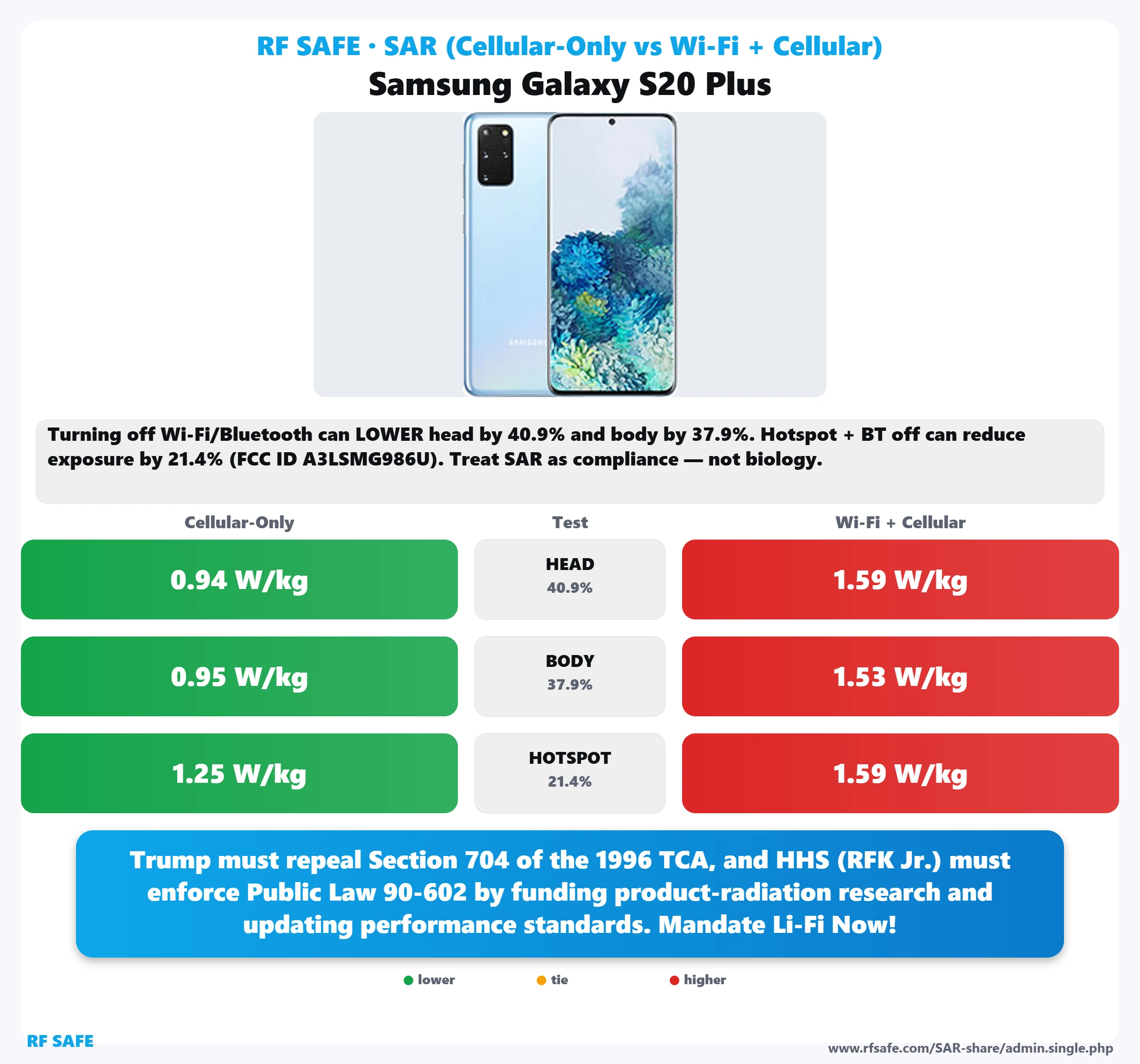

SAR
Hybrid SAR profile
Cellular-only and simultaneous transmitters
US limit 1.6 W/kg
Head · Cellular
0.94 W/kg
58.7% of 1.6#36
Body · Cellular
0.95 W/kg
59.4% of 1.6#27
Hotspot · Cellular
1.25 W/kg
78.1% of 1.6#70
Head · Wi-Fi + Cell
1.59 W/kg
99.4% of 1.6#67
Body · Wi-Fi + Cell
1.53 W/kg
95.6% of 1.6#48
Hotspot · Wi-Fi + Cell
1.59 W/kg
99.4% of 1.6#64
PositionCellular onlyDifferenceWi-Fi + cellular
Head0.94 W/kg 58.75% · #3640.9% lower1.59 W/kg 99.38% · #67
Body0.95 W/kg 59.38% · #2737.9% lower1.53 W/kg 95.63% · #48
Hotspot1.25 W/kg 78.13% · #7021.4% lower1.59 W/kg 99.38% · #64

Difference = (1 − cellular-only ÷ simultaneous) × 100. Rank and percentage values come from the supplied RF Safe cache. SAR is a compliance measurement, not an individualized health prediction.

Complete specifications

Factual fields are shown first. Longer cached editorial notes remain expandable to keep the page fast to scan.

◉  General
Phone
Samsung Galaxy S20 Plus
Technology
GSM / CDMA / HSPA / EVDO / LTE
Announced
2020-02-11 22:30:51
Status
Available. Released 2020, March 6
Price
€ 999.00 / $ 979.00 / £ 994.99 / ₹ 73,999
Model Names
SM-G985, SM-G985F, SM-G985F/DS
▣  Display
Type
Dynamic AMOLED 2X capacitive touchscreen, 16M colors
Size
6.7 inches, 108.0 cm2 (~90.5% screen-to-body ratio)
Resolution
1440 x 3200 pixels, 20:9 ratio (~525 ppi density)
Protection
Corning Gorilla Glass 6
Features
Corning Gorilla Glass 6 HDR10+Always-on display120Hz@FHD, 60Hz@QHD
◎  Camera
Main Camera
Quad Camera: 12 MP, f/1.8, 26mm (wide), 1/1.76", 1.8m, Dual Pixel PDAF, OIS 64 MP, f/2.0, (telephoto), 1/1.72", 0.8m, PDAF, OIS, 3x hybrid optical zoom 12 MP, f/2.2, 13mm (ultrawide), 1.4m, Super Steady video 0.3 MP, TOF 3D, f/1.0, (depth)
Main Features
LED flash, auto-HDR, panorama
Video
4320p@24fps, 2160p@30/60fps, 1080p@30/60/240fps, 720p@960fps, HDR10+, dual-video rec., stereo sound rec., gyro-EIS & OIS
Selfie Camera
Dual Camera: 10 MP, f/2.2, 26mm (wide), 1/3.2", 1.22m, Dual Pixel PDAF
Selfie Camera Features
Dual video call, Auto-HDR
Selfie Camera Video
2160p@30/60fps, 1080p@30fps
ϟ  Battery
Charging
Fast battery charging 25W USB Power Delivery 3.0 Fast Qi/PMA wireless charging 15W Power bank/Reverse wireless charging 9W
◆  Hardware
Operating System
Android 10.0; One UI 2
Chipset
Exynos 990 (7 nm+) - GlobalQualcomm SM8250 Snapdragon 865 (7 nm+) - USA
CPU
Octa-core (2x2.73 GHz Mongoose M5 & 2x2.50 GHz Cortex-A76 & 4x2.0 GHz Cortex-A55) - GlobalOcta-core (1x2.84 GHz Kryo 585 & 3x2.42 GHz Kryo 585 & 4x1.8 GHz Kryo 585) - USA
GPU
Mali-G77 MP11 - GlobalAdreno 650 - USA
Internal Storage
128GB 8GB RAM
Card Slot
microSDXC (uses shared SIM slot)
Sensors
Fingerprint (under display, ultrasonic), accelerometer, gyro, proximity, compass, barometer
⌁  Connectivity
Wi-fi
Wi-Fi 802.11 a/b/g/n/ac/ax, dual-band, Wi-Fi Direct, hotspot
Bluetooth
5.0, A2DP, LE
USB
3.2, Type-C 1.0 reversible connector, USB On-The-Go
GPS
Yes, with A-GPS, GLONASS, BDS, GALILEO
NFC
Yes
Radio
FM radio (USA & Canada only)
◒  Sound
Loudspeaker
Yes, with stereo speakers
3.5mm Jack
No
◇  Design
Type
Bar
Dimensions
161.9 x 73.7 x 7.8 mm (6.37 x 2.90 x 0.31 in)
Weight
186 g (6.56 oz)
Colors
Cosmic Black, Cosmic Grey, Cloud Blue, Cloud White, Aura Red
Build
Glass front (Gorilla Glass 6), glass back (Gorilla Glass 6), aluminum frame
⌁  Network
Speed
HSPA 42.2/5.76 Mbps, LTE-A (7CA) Cat20 2000/200 Mbps
SIM
Single SIM (Nano-SIM and/or eSIM) or Hybrid Dual SIM (Nano-SIM, dual stand-by)
2G Network
GSM 850 / 900 / 1800 / 1900 - SIM 1 & SIM 2 (Dual SIM model only)
3G Network
HSDPA 850 / 900 / 1700(AWS) / 1900 / 2100
4G Network
LTE band 1(2100), 2(1900), 3(1800), 4(1700/2100), 5(850), 7(2600), 8(900), 12(700), 13(700), 17(700), 18(800), 19(800), 20(800), 25(1900), 26(850), 28(700), 32(1500), 38(2600), 39(1900), 40(2300), 41(2500), 66(1700/2100)
