Samsung
Samsung Galaxy S10 LITE
Complete phone profile

Samsung Galaxy S10 LITE

A fast, evidence-aware guide to specifications, connectivity, hardware, and radiofrequency exposure measurements.

6.7 inches, 107.8 cm2 (~87.8% screen-to-body ratio)Android 10.0; One UI 2FCC ID A3LSMG770F

At a glance

The facts most people need before the deep specification sheet.

Display6.7 inches, 107.8 cm2 (~87.8% screen-to-body ratio)
ProcessorQualcomm SM8150 Snapdragon 855 (7 nm)
Operating systemAndroid 10.0; One UI 2
BatteryNot listed
Main cameraTriple Camera: 48 MP, f/2.0, 26mm (wide), 1/2.0", 0.8m, PDAF, Super Steady OIS 12 MP, f/2.2, 12mm (ultrawide) 5 MP, f/2.4, 25mm (macro), 1/5.0", 1.12m
NetworkGSM / HSPA / LTE
AnnouncedJanuary 3, 2020
Dimensions162.5 x 75.6 x 8.1 mm (6.40 x 2.98 x 0.32 in)

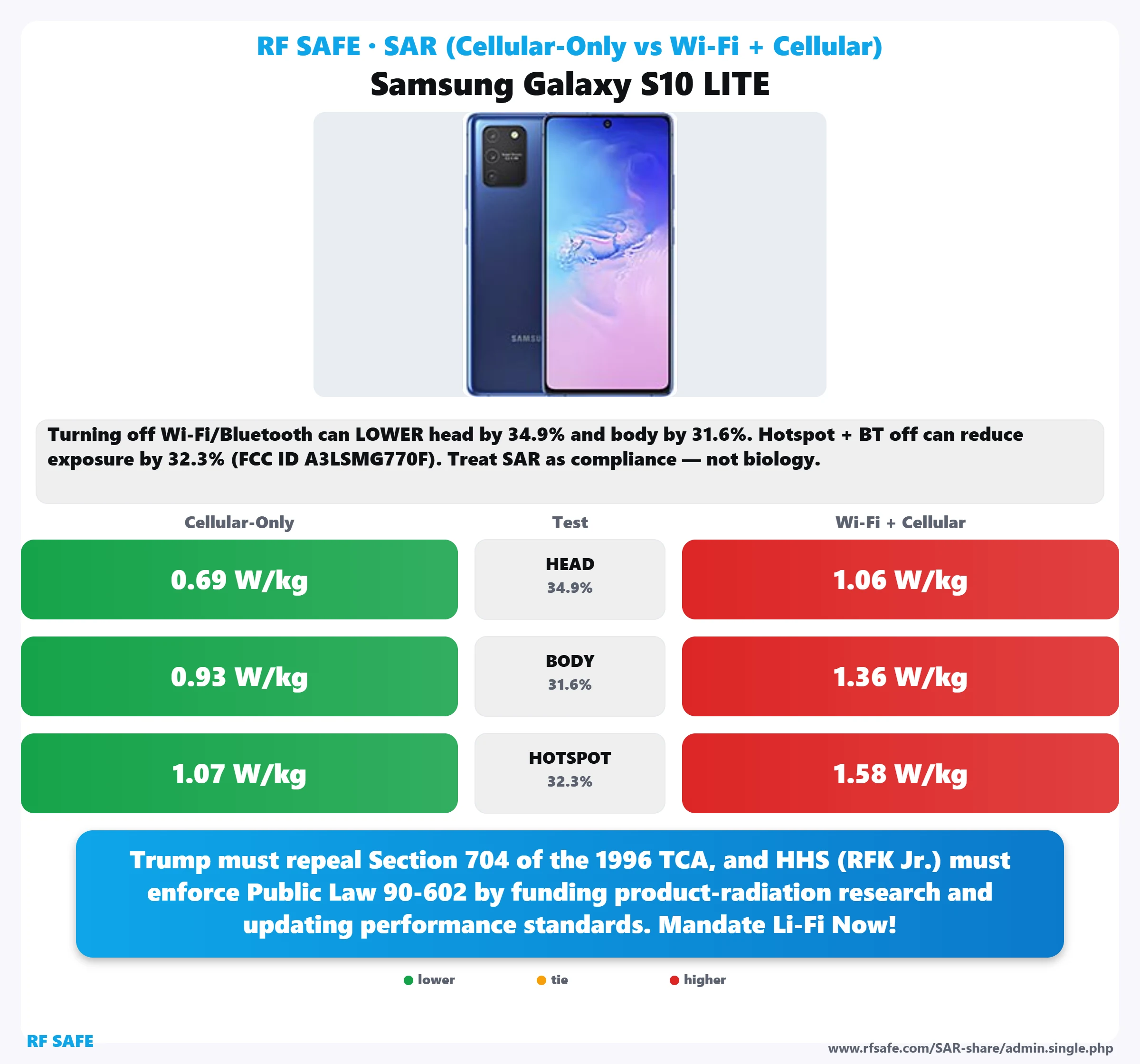

SAR
Hybrid SAR profile
Cellular-only and simultaneous transmitters
US limit 1.6 W/kg
Head · Cellular
0.69 W/kg
43.1% of 1.6#21
Body · Cellular
0.93 W/kg
58.1% of 1.6#25
Hotspot · Cellular
1.07 W/kg
66.9% of 1.6#27
Head · Wi-Fi + Cell
1.06 W/kg
66.2% of 1.6#9
Body · Wi-Fi + Cell
1.36 W/kg
85.0% of 1.6#20
Hotspot · Wi-Fi + Cell
1.58 W/kg
98.8% of 1.6#55
PositionCellular onlyDifferenceWi-Fi + cellular
Head0.69 W/kg 43.13% · #2134.9% lower1.06 W/kg 66.25% · #9
Body0.93 W/kg 58.13% · #2531.6% lower1.36 W/kg 85.00% · #20
Hotspot1.07 W/kg 66.88% · #2732.3% lower1.58 W/kg 98.75% · #55

Difference = (1 − cellular-only ÷ simultaneous) × 100. Rank and percentage values come from the supplied RF Safe cache. SAR is a compliance measurement, not an individualized health prediction.

Complete specifications

Factual fields are shown first. Longer cached editorial notes remain expandable to keep the page fast to scan.

◉  General
Phone
Samsung Galaxy S10 LITE
Technology
GSM / HSPA / LTE
Announced
January 3, 2020
Status
Available
Price
€ 600.17 / $ 559.95 / £ 518.08 / ₹ 39,999
Model Names
SM-G770F, SM-G770F/DS, SM-G770F/DSM
▣  Display
Type
Super AMOLED Plus capacitive touchscreen, 16M colors
Size
6.7 inches, 107.8 cm2 (~87.8% screen-to-body ratio)
Resolution
1080 x 2400 pixels, 20:9 ratio (~394 ppi density)
Features
N/A
◎  Camera
Main Camera
Triple Camera: 48 MP, f/2.0, 26mm (wide), 1/2.0", 0.8m, PDAF, Super Steady OIS 12 MP, f/2.2, 12mm (ultrawide) 5 MP, f/2.4, 25mm (macro), 1/5.0", 1.12m
Main Features
LED flash, panorama, HDR
Video
2160p@30/60fps, 1080p@30/60/240fps; gyro-EIS
Selfie Camera
Single Camera: 32 MP, f/2.2, 25mm (wide), 1/2.8", 0.8m
Selfie Camera Features
HDR
Selfie Camera Video
1080p@30fps
ϟ  Battery
Charging
Fast battery charging 45W
◆  Hardware
Operating System
Android 10.0; One UI 2
Chipset
Qualcomm SM8150 Snapdragon 855 (7 nm)
CPU
Octa-core (1x2.84 GHz Kryo 485 & 3x2.42 GHz Kryo 485 & 4x1.78 GHz Kryo 485)
GPU
Adreno 640
Performance
AnTuTu: 370751 (v7), 459497 (v8) GeekBench: 11151 (v4.4), 2732 (v5.1) GFXBench: 56fps (ES 3.1 onscreen)
Internal Storage
128GB 6GB RAM, 128GB 8GB RAM, 512GB 8GB RAM
Card Slot
microSDXC (uses shared SIM slot)
Sensors
Fingerprint (under display, optical), accelerometer, gyro, proximity, compass
⌁  Connectivity
Wi-fi
Wi-Fi 802.11 a/b/g/n/ac, dual-band, Wi-Fi Direct, hotspot
Bluetooth
5.0, A2DP, LE
USB
2.0, Type-C 1.0 reversible connector
GPS
Yes, with A-GPS, GLONASS, GALILEO, BDS
NFC
Yes
◒  Sound
Loudspeaker
Yes
3.5mm Jack
No
◇  Design
Type
Bar
Dimensions
162.5 x 75.6 x 8.1 mm (6.40 x 2.98 x 0.32 in)
Weight
186 g (6.56 oz)
Colors
Prism White, Prism Black, Prism Blue
⌁  Network
Speed
HSPA 42.2/5.76 Mbps, LTE-A
SIM
Single SIM (Nano-SIM) or Dual SIM (Nano-SIM, dual stand-by)
2G Network
GSM 850 / 900 / 1800 / 1900 - SIM 1 & SIM 2 (dual-SIM model only)
3G Network
HSDPA 850 / 900 / 1700(AWS) / 1900 / 2100
4G Network
LTE band 1(2100), 2(1900), 3(1800), 4(1700/2100), 5(850), 7(2600), 8(900), 12(700), 13(700), 17(700), 20(800), 26(850), 28(700), 38(2600), 40(2300), 41(2500), 66(1700/2100)
