Apple
Apple iPhone 7 Plus
Complete phone profile

Apple iPhone 7 Plus

A fast, evidence-aware guide to specifications, connectivity, hardware, and radiofrequency exposure measurements.

5.5 inches, 83.4 cm2 (~67.7% screen-to-body ratio)iOS 10.0.1, upgradable to iOS 15.7FCC ID BCG-E3087A

At a glance

The facts most people need before the deep specification sheet.

Display5.5 inches, 83.4 cm2 (~67.7% screen-to-body ratio)
ProcessorApple A10 Fusion (16 nm)
Operating systemiOS 10.0.1, upgradable to iOS 15.7
BatteryLi-Ion 2900 mAh, non-removable (11.1 Wh)
Main cameraDual Camera: 12 MP, f/1.8, 28mm (wide), 1/3", PDAF, OIS 12 MP, f/2.8, 56mm (telephoto), 1/3.6", AF, 2x optical zoom
NetworkGSM / CDMA / HSPA / EVDO / LTE
Announced2016, September 07. Released 2016, September 16
Dimensions158.2 x 77.9 x 7.3 mm (6.23 x 3.07 x 0.29 in)

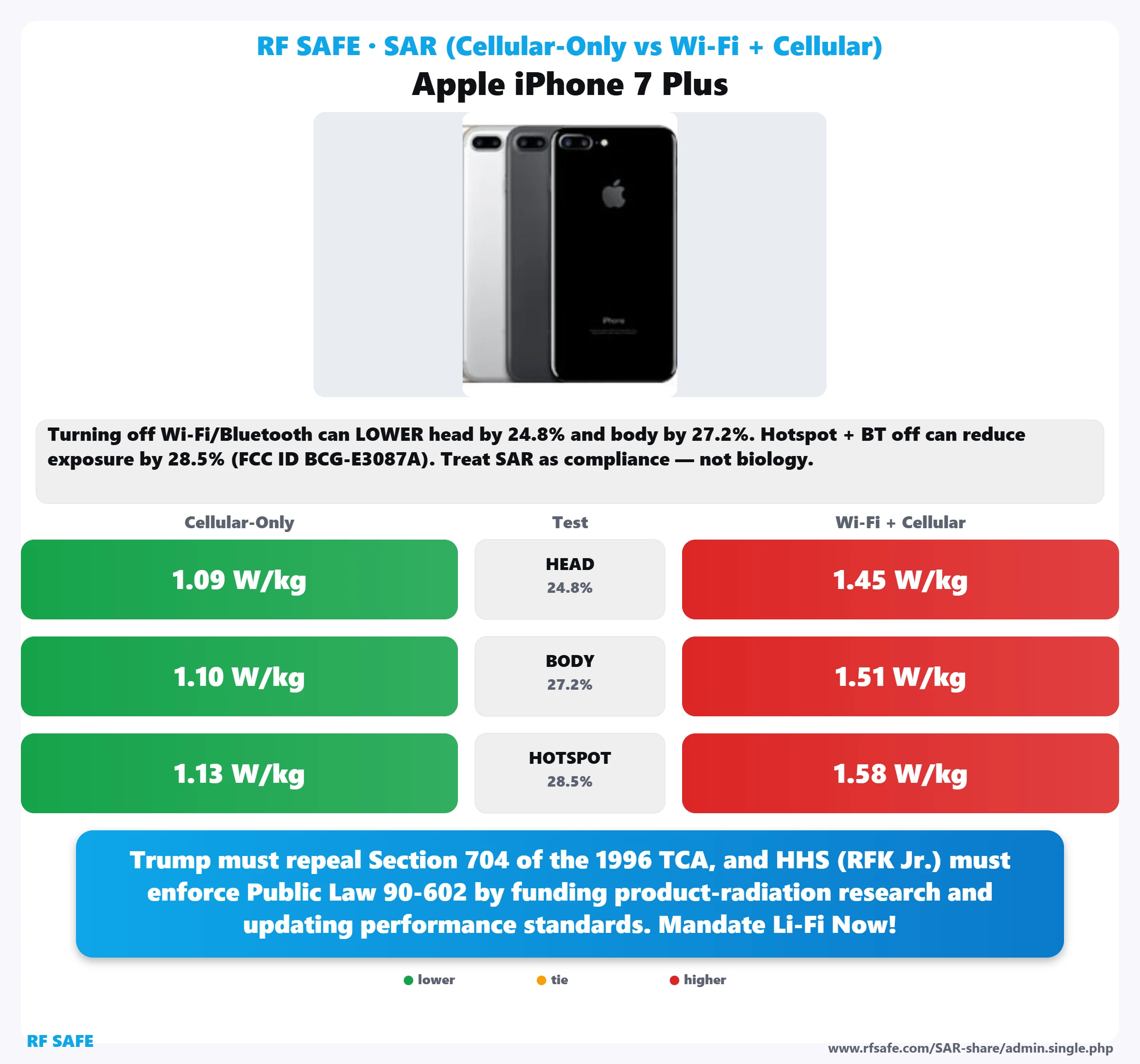

SAR
Hybrid SAR profile
Cellular-only and simultaneous transmitters
US limit 1.6 W/kg
Head · Cellular
1.09 W/kg
68.1% of 1.6#47
Body · Cellular
1.10 W/kg
68.8% of 1.6#48
Hotspot · Cellular
1.13 W/kg
70.6% of 1.6#38
Head · Wi-Fi + Cell
1.45 W/kg
90.6% of 1.6#45
Body · Wi-Fi + Cell
1.51 W/kg
94.4% of 1.6#41
Hotspot · Wi-Fi + Cell
1.58 W/kg
98.8% of 1.6#55
PositionCellular onlyDifferenceWi-Fi + cellular
Head1.09 W/kg 68.13% · #4724.8% lower1.45 W/kg 90.63% · #45
Body1.10 W/kg 68.75% · #4827.2% lower1.51 W/kg 94.38% · #41
Hotspot1.13 W/kg 70.63% · #3828.5% lower1.58 W/kg 98.75% · #55

Difference = (1 − cellular-only ÷ simultaneous) × 100. Rank and percentage values come from the supplied RF Safe cache. SAR is a compliance measurement, not an individualized health prediction.

Complete specifications

Factual fields are shown first. Longer cached editorial notes remain expandable to keep the page fast to scan.

◉  General
Phone
Apple iPhone 7 Plus
Technology
GSM / CDMA / HSPA / EVDO / LTE
Announced
2016, September 07. Released 2016, September 16
Status
Discontinued
Price
About 320 EUR
Model Names
A1661, A1784, A1785, A1786, iPhone9,4
▣  Display
Type
Retina IPS LCD, 625 nits (typ)
Size
5.5 inches, 83.4 cm2 (~67.7% screen-to-body ratio)
Resolution
1080 x 1920 pixels, 16:9 ratio (~401 ppi density)
Protection
Ion-strengthened glass
Features
3D Touch display & home button
◎  Camera
Main Camera
Dual Camera: 12 MP, f/1.8, 28mm (wide), 1/3", PDAF, OIS 12 MP, f/2.8, 56mm (telephoto), 1/3.6", AF, 2x optical zoom
Main Features
Quad-LED dual-tone flash, HDR
Video
4K@30fps, 1080p@30/60/120fps, 720p@240fps
Selfie Camera
Single Camera: 7 MP, f/2.2, 32mm (standard)
Selfie Camera Features
Face detection, HDR
Selfie Camera Video
1080p@30fps
ϟ  Battery
Type
Li-Ion 2900 mAh, non-removable (11.1 Wh)
◆  Hardware
Operating System
iOS 10.0.1, upgradable to iOS 15.7
Chipset
Apple A10 Fusion (16 nm)
CPU
Quad-core 2.34 GHz (2x Hurricane + 2x Zephyr)
GPU
PowerVR Series7XT Plus (six-core graphics)
Performance
Basemark OS II 2.0: 3796
Internal Storage
32GB 3GB RAM, 128GB 3GB RAM, 256GB 3GB RAM NVMe
Card Slot
No
Sensors
Fingerprint (front-mounted), accelerometer, gyro, proximity, compass, barometer
⌁  Connectivity
Wi-fi
Wi-Fi 802.11 a/b/g/n/ac, dual-band, hotspot
Bluetooth
4.2, A2DP, LE
USB
Lightning, USB 2.0
GPS
GPS, GLONASS, GALILEO, QZSS
NFC
Yes
Radio
No
◒  Sound
Loudspeaker
Yes, with stereo speakers
3.5mm Jack
No
◇  Design
Type
Bar
Dimensions
158.2 x 77.9 x 7.3 mm (6.23 x 3.07 x 0.29 in)
Weight
188 g (6.63 oz)
Colors
Jet Black, Black, Silver, Gold, Rose Gold, Red
Build
Glass front (Corning-made glass), aluminum back, aluminum frame
⌁  Network
Speed
HSPA 42.2/5.76 Mbps, LTE-A (3CA) Cat9 450/50 Mbps, EV-DO Rev.A 3.1 Mbps
SIM
Nano-SIM IP67 dust/water resistant (up to 1m for 30 min) Apple Pay (Visa, MasterCard, AMEX certified)
2G Network
GSM 850 / 900 / 1800 / 1900 - A1661, A1784 CDMA 800 / 1900 / 2100 - A1661
3G Network
HSDPA 850 / 900 / 1700(AWS) / 1900 / 2100 - A1661, A1784 CDMA2000 1xEV-DO & TD-SCDMA - A1661
4G Network
1, 2, 3, 4, 5, 7, 8, 12, 13, 17, 18, 19, 20, 25, 26, 27, 28, 29, 30, 38, 39, 40, 41 - A1661, A1784
